Description

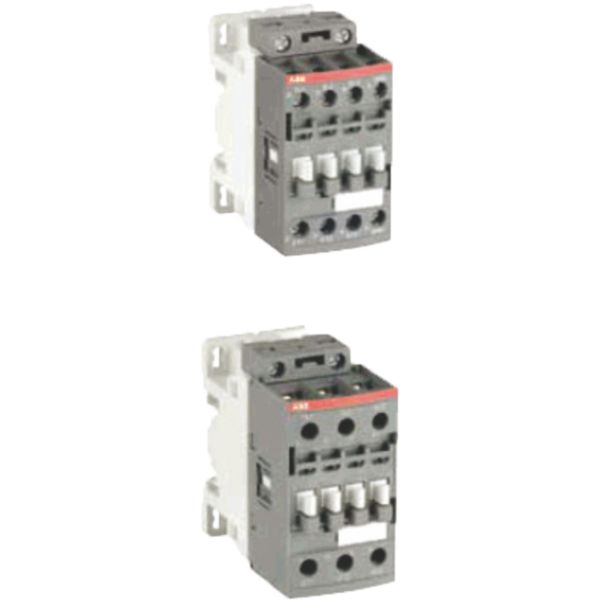

- Contactors AF09 to AF38
- Application:
- – AF09-AF38 contactors are used for controlling power circuits up to 690V AC and 220V DC
- – They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
- – AF09-AF38 contactors use an electronic coil interface accepting a wide control voltage Uc min-Uc max
- – Only four coils cover control voltage between 24-500V 50/60 Hz or 20-500V DC
- – AF Contactors can manage large control voltage variations. One coil (e.g. 100-250V 50/60 Hz-DC) can be used
for different control voltage used worldwide without any coil change - – AF-Z contactors equipped with a Z coil type type allow direct control by 24V DC 500mA PLC-Output and obtain a
reduced holding coil consumption - – AF-Z contactors withstand short dips and voltage interruptions (SEMI F47-0706 compliance)
- – AF contactors have built in surge protection and do not require any additional surge suppressors
- – The built in N.C contact is a mirror contact in compliance with annex F of IEC 60947-4-1
